机台特性 Machine Features

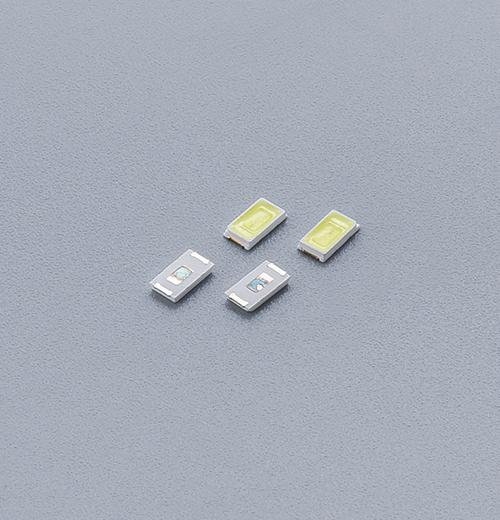

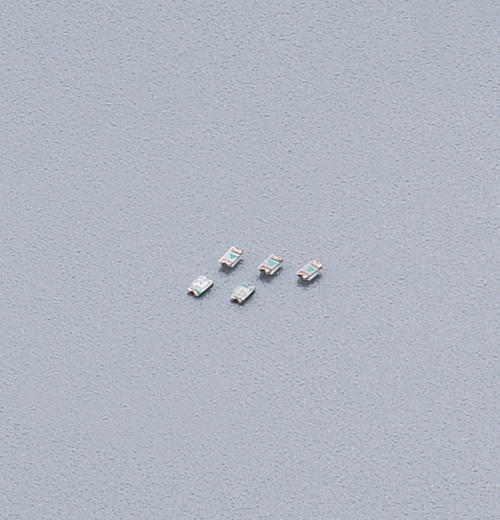

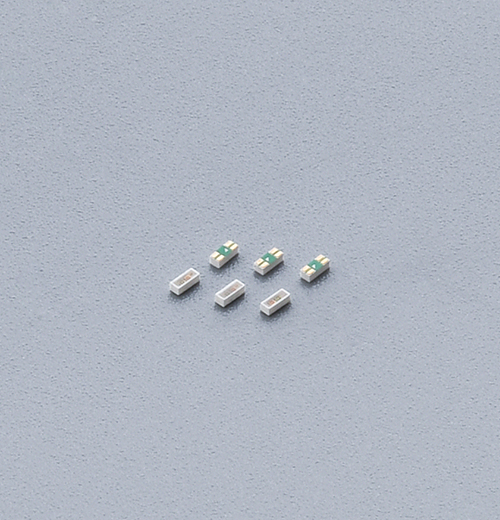

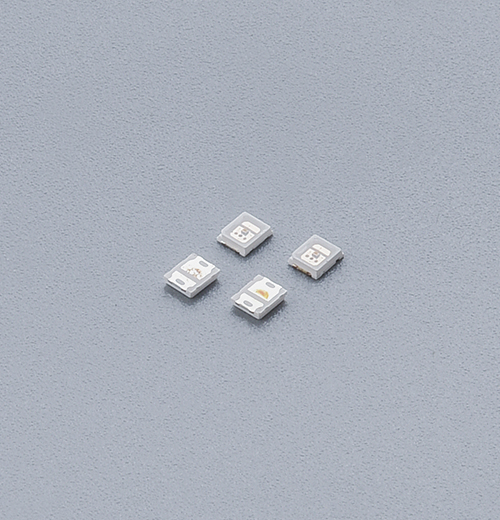

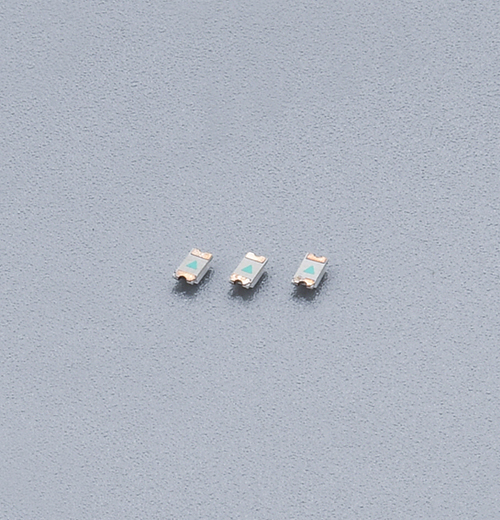

-适用于检测各类型SMD电感、电容、电阻系列产品等。

-快速完成各项检测指标，检测速度可达每分钟2000支，精度最高可达5卩。

-创新的人性化设计机台及系统、简易的操作方式、友好的用户界面

♦ It is designed for inspecting of SMD inductance、capacitor、resistance parts of all kinds. Inspects the dimensions rapidly, with speed up to 15,000 pcs per minute, and accuracy up to 5p.

♦ Innovated user-friendly design machine and system, as well as user-friendly interface, allowing easy operation.


检测指标Indicators

缺陷检测 切偏、缺料、披锋、开裂、划痕、脏污等

Dimensions

cutting deviation, material shortage, sharp edge, crack, scratch, dirt, etc


系统规格 System Specifications

品牌

Brand

HENGGONG® iForce®

检测软件

Software for inspecting

恒工iForce影像检测系统标准版

HENGGONG，iForce® Imaging Detection System Standard Edition

设备类型 Equipment type

AOI六面检

AOI CUBIC

光学系统

Optical system

德国高倍率CCD工业相机，工业镜头、工业光源系统

High-power CCD industrial camera, industrial lensz industrial Light source system from German

相机个数

Number of cameras

6个相机

6 typically

控制系统

Control system

双核工业工控机

Dual core industrial computer


专用进料导轨，振动盘设备一套，自动补料储料斗设备

Special feeding guide, a set of vibration plate unit, auto feeding and storage hoppers (optional)


计数功能：具备满Bin计数功能，可以依据产品尺寸设置Bin数量

Counting function: With full Bin counting function, the number of Bins can be set according to the product size

进料系统

Feeding system

良率预警功能：具备单项不良超过设置比例时机台报警停机功能

Yield rate warning ftjnction: ttie machine will alarm and stop when a single defect exceeds the set ratio



Barrel induction: the barrel has automatic induction function

系统对接：开放以太网数据接口，对MES系统，交互设备状态数据信息，发送检测各数据报表

System docldng: Open Ethernet data interface, ©change equipment status data information for MES system, and send test data reports

检测速度

最高达2000支/分钟

Inspecting speed

up to 2,000 pcs per minute

检测精度

最高可达5u

Accuracy

up to 5u

电源电压 Power voltage

220V 50HZ

额定功率 Rated power

1.5KW

气压

Air pressure

0.6Mpa

设备重量 Equipment weight

350KG

设备尺寸

Equipment dimensions

900mm*800mm*1850mm

工作温度

Operating temperature

0°C~50°C
